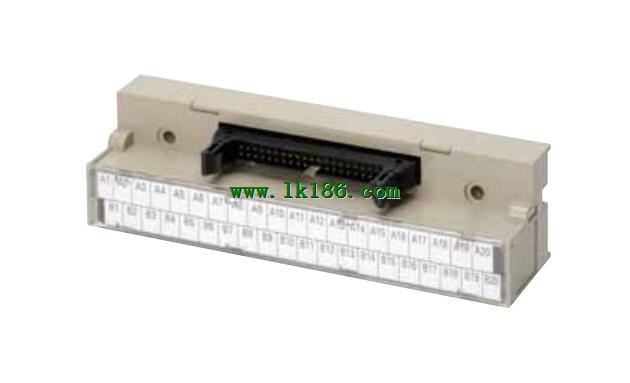

>> XW2D-34C6 Slim Connector-Terminal Block Conversion Units OMRON XW2D-34C6
XW2D-34C6 Slim Connector-Terminal Block Conversion Units OMRON XW2D-34C6
Brand:
OMRON
Name: Slim Connector-Terminal Block Conversion Units
Model: XW2D-34C6
Mounted Connector: XG4C MIL Connectors.
No. of poles: 34.
Dimension A: 128.
Dimension B: 100.
Mounted Connector model: XG4C-3431.
Cable Connector model: XG4M-3430-U.
New Slim Connector-Terminal Block,
Conversion Units.
Mounting area reduced by 35% (in comparison with,
40-pole XW2B Units) to contribute to downsizing,
control panels and automatic equipment.
Fallout prevention for terminal screws.
Round or forked crimp terminals can be used.
Mount to DIN Track or via screws.
Unique DIN Track lock can maintain open status,
during DIN Track attachment and removal.
Terminal cover can be locked open.
Screw terminals are arranged by color in groups,
of five to simplify counting terminal numbers.
