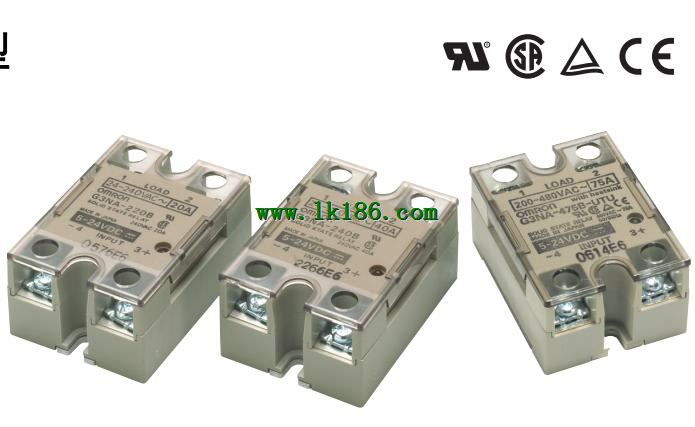

>> OMRON G3NA-420B DC5-24 Rated input voltage: 5 to 24 VDC Solid State Relays G3NA-420B DC5-24
OMRON G3NA-420B DC5-24 Rated input voltage: 5 to 24 VDC Solid State Relays G3NA-420B DC5-24
Brand:
OMRON
Name: Solid State Relays
Model: G3NA-420B DC5-24
Isolation: Photocoupler.
Zero cross function: Yes.
Indicator: Yes(Yellow).
Applicable output load (See note 1.): 20 A at 200 to 480 VAC.
Rated input voltage: 5 to 24 VDC.
Wide Lineup of General-purpose Solid State.
Relays with Applicable Loads of 5 to 90 A.
AC Output Relays with 75-A and 90-A output currents have been,
added to the G3NA Series.
All models feature the same compact dimensions to provide a,
uniform mounting pitch.
Built-in varistor effectively absorbs external surges.
(except G3NA-D210B).
Operation indicator enables monitoring operation.
Protective cover for greater safety.
Standard models certified by UL and CSA and -UTU models by TÜV.
(except G3NA-410B, G3NA-420B, and G3NA-440B(-2)).
...More relevant models >>>>
