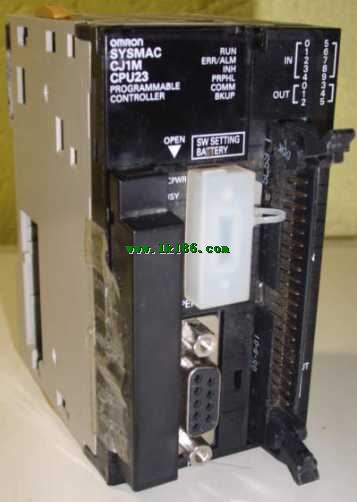

OMRON CJ1M-CPU23 Current consumption: 5v, 064A (Seenote 1) 24V,-- Programmable Controllers CJ1M-CPU23

Brand: OMRON
Name: Programmable Controllers
Model: CJ1M-CPU23
Product name: CJ1M CPU Units; built-in I/O.
Specifications: I/O capacity/Mountable Units Expansion Racks),
640 points/20 Units(1 Expansion Racks max.) ; Program capacity,
20K steps; Data memory capacity, 32K words(DM: 32K words, EM: None);
LD nstruction execution time, 0.1 μs;
Built-in I/O , 10 inputs and6 outputs,
2 counter inputs, 2 pulse outputs.
Current consumption: 5v, 0.64A (Seenote 1.) ; 24V,--.
Standards: UC1, N, L, CE.
Versatile Machine Control with the,
Highest Performance Standards in the Industry.

Unit type: CJ1 CPU Bus Units.
Product Name: Serial Communications nits.
Specifications:Communications Interface,
2 RS-422A/485 ports;
Communications functions,
The following functions can be,
selected for each port:
Protocol macro Host Link,
NT Links (1:N mode)Serial Gateway,
No-protocol Modbus-RTU Slave OMRON CJ1M-CPU23.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.38A; 24V,-- CJ1M-CPU23
Standards: UC1, N, L, CE.
The Serial Communications Units That Enable,
High-speed Connections with External Devices.
Each Serial Communications Unit provides two,
serial communications ports: RS-232C and,
RS-422A/485, and the serial communications,
mode can be set separately for each port from,
Protocol Macro, Host Link, NT Link,
Serial Gateway, and No-protocol OMRON CJ1M-CPU23. Product name: CJ2H CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 150K steps; Data memory capacity,
352K words(DM: 32K words, EM: 32K words × 10 banks);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.42(See note OMRON CJ1M-CPU23. ); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors OMRON Programmable Controllers. Name: Loop-control CPU Unit.
I/O bits: 1,280 bits.
Program capacity: 30K steps.
DM words: 32K words.
EM words: 32K words × 1 bank E0_00000 to E0_32767 OMRON Programmable Controllers.
Versatile Machine Control with the,
Highest Performance Standards in the Industry. Unit classification: CJ1 Special I/O Units.
name: Position control unit.
Specifications; Control method/Control,
output interface:Open-loop control by pulse,
train output/Open-collector output;
Number of control axes : 4 axes OMRON Programmable Controllers.
No. of unit numbers allocated: 2.
Cuurrent consumption: 5V, 0 CJ1M-CPU23. 36A; 24V, --.
Standards: UC1, CE.
High-speed, High-precision positioning,
with 1, 2, or 4 axes.
Versatile functions and superb performance,
enable the construction of compact,
high-performance machiines OMRON CJ1M-CPU23.
With its ultra-compact size of 31 × 90mm (W×H),
this highly space-efficient Position Control Unit,
(PCU) enables up to 4 axes of motor control.
