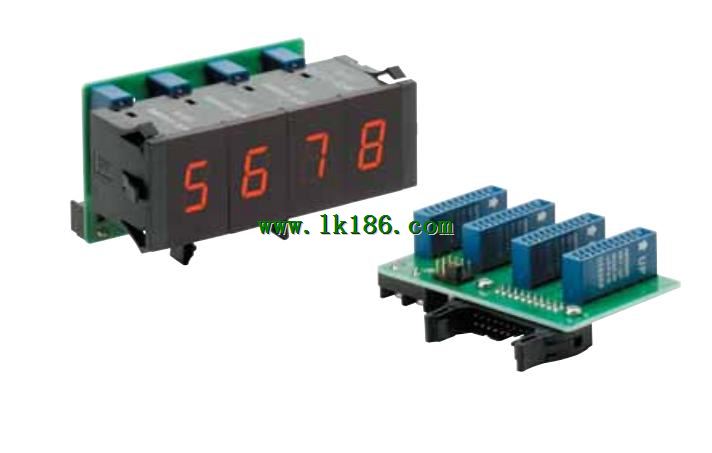

M7E-12DGN2 OMRON Digital Display OMRON M7E-12DGN2

Brand: OMRON
Name: Digital Display
Model: M7E-12DGN2
Display contents: Decimal.
Type: Front mounting.
Logic input: Negative.
Display color: Green.
Digital Display with Wire-saving Serial.
Transmission Function (B7A Output).
Single-color (red or green) and three-color (red, green, or,
orange selectable) displays with a character height of 80, 120,
or 200 mm are available for a variety of applications and locations.
Thin design with a 39.5-mm depth for the 120-mm model is,
perfect for saving space in equipment and devices.
Decimal display including negative sign (−) display with signal,
codes is possible.

Cable: With no cable.
Connector: Y-Joint Plug/Socket.
Cable length: --.
Minimum order: 10.
Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock OMRON M7E-12DGN2.
A positive click indicates locking.
Features the same degree of protection (IP67) as M12 connectors M7E-12DGN2
A full line-up of models is planned.
Connectors with Cables are UL approved. Cable type: Standard Cables.
Type: Cable with Plugs on Both Ends (M12 Straight/RJ45) .
Cable length: 1 m.
Cables and Connectors for,
EtherCAT® and Other Industrial,
Ethernet Networks OMRON M7E-12DGN2. Terminals: Push-In Plus terminal blocks.
Type: Output *2.
Points: 16.
Internal I/O circuit common: PNP (- common).
Rated voltage: 24 VDC.
I/O Relay Terminals with 16 Points and,
Push-In Plus terminal blocks to,
Downsize Control Panels and Save Labor.
I/O Relay Terminals with 16 points to mount G2RV Slim I/O Relays.
Push-In Plus terminal blocks are used to save wiring work in,
comparison with traditional screw terminals OMRON M7E-12DGN2. (Wiring time is,
reduced by 60%* in comparison with traditional screw terminals.).
Work is reduced ever further with one-step cable connection to the PLC.
Diode provided for coil surge absorption OMRON Digital Display.
Operation indicators for immediate recognition of I/O signal status.
Accepts G3RV Slim I/O SSRs.
DIN Track or screw mounting. Power supply voltage: 100 to 240 VAC OMRON Digital Display.
Heater control method: ON/OFF control SSR control.
Input specifications: Two current inputs,
(for either single phase or threephase).
Output specifications: Two transistor outputs.
Communications output: RS-485.
Current input range: 20.0 to 200.0 A.
A high-precision Heater Element OMRON Digital Display.
Burnout Detector compatible with a,
wide-range of heater control methods.
Push-in terminals reduce the workload.
Scaling.
NPN or PNP equivalent output.
Lineup includes models compatible with many heater control methods,
including ON/OFF control, pphase control, and cyclic control M7E-12DGN2.
High-precision heater burnout alarm with digital measurement.
Contributes to preventative maintenance.
If the gate function is disabled, the gate input can be used as an,
undercurrent/overcurreent relay or for motor or lamp loads OMRON M7E-12DGN2.
Undercurrent detection values can be set separately for CT1 and CT2.
CE marking and cUL certified (K8AC-H2@@@).
