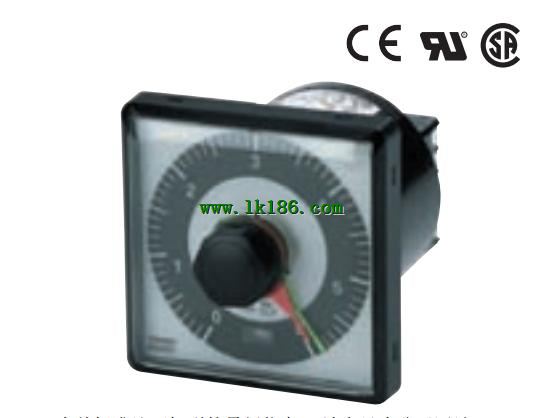

H3AM-NS-A IP65 watertight and dust-tight front panel OMRON H3AM-NS-A

H3AM-NS-A Introduce | H3AM-NS-A Catalog/Manual/Instructions/Software download

Brand: OMRON
Name: Mechatronic Analog Timer
Model: H3AM-NS-A
Rated supply voltage: 100 to 240 VAC.
Resetting system (See note.): Self-resetting.
Control output: DPDT contact output (Time-limit output SPDT,
and switchable SPDT(time-limit - instantaneous)).
Time range: 0.5 s to 30 h (30 s, 3 min, 30 min, 3 h, 30 h).
Large Setting Dial and Moving Pointers Ideal,
for Easy Operation and Monitoring.
Incorporating an easy-to-see large setting dial with moving pointers.
Wide time-setting range of 0.2 s to 60 h.
(available through three time-range model types).
Wide AC power supply range (100 to 240 VAC).
IP65 watertight and dust-tight front panel.
Approved by UL and CSA.
Conforms to EN61812-1 and IEC60664-1.
4 kV for Low Voltage, and EMC Directives.
Conforms to EMC standards.
Six-language instruction manual provided.
Programmable contact enables the building of a self-holding,
relay circuit as well as built-in instantaneous contact. (-NS).
Memory retention (-NSR).
Finger protection terminal block.
Enables easy sequence checks through instantaneous outputs.
for a zero set value at any time range.

Display type: UP display timer (increments from 0 to the set time).
Output type: Transistor output.
Pin type: 8-pin.
Memory backup: Not provided.
Supply voltage: 12 to 48 VDC.
Rated time: 0.001 to 9.999 s.
Miniature DIN-sized (48 x 48 mm) Quartz.
Timer with Abundant Series Versions.
Series version cover a wide range of rated times; 9 OMRON H3AM-NS-A. 999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min H3AM-NS-A
Selection of elapsed time indication, remaining time indication,
contact output, and transistor output types to suit requirements.
Power supply freely selectable within a range of 100 to,
240 VAC, as well as 12 to 48 VDC.
Certified for UL and CSA safety standards. Classification: Preset Counter OMRON H3AM-NS-A.
Input signal system (Count & reset inputs): Contact, Transistor.
Mounting method: Flush mounting, surface mounting.
Display: 7-segment LEDs (10 mm high), Up indicator.
Number of digits: 4 digits (0 to 9,999).
Backup power for memory protection: No.
Control output: Contact (SPST-NO).
Operating mode: Down counting.
Max.counting speed: 30 cps.
All Required Counter Functions.
Incorporated in a Compact DIN-sized OMRON H3AM-NS-A.
(48 × 48) Housing.
In addition to Up and Down models, a reversible (Up-Down),
counter is also available.
Maximum counting speed of 5,000 cps, never before attained by,
a small-size preset counter.
Power supply freely selectable within a range of 100 to 240 VAC OMRON Mechatronic Analog Timer.
Also, power supply for the DC-operated models is selectable,
within a range of 12 to 48 V.
Models with memory backup function against power failure available OMRON Mechatronic Analog Timer. Size: 30 × 80 × 78mm (W × H × D).
Power supply voltage: 100 to 240 VAC.
A compact converter that allows,
communications between RS-232C/USB and,
RS-422/485 devices. Ideal for industrial,
applications.
Allows communications between RS-232C/USB (Universal,
Serial Bus) and RS-422/485 devices OMRON Mechatronic Analog Timer.
Applicable in FA environments: Has passed environment,
resistance tests equivalent to those for control devvices H3AM-NS-A.
CE marking (except for USB).
UL/CSA certification (mark license recognition).
Compact 30-mm-wide body supports both screw-mounting and,
DIN track mounting.
Operation either with or without echoback available.
Functionaliity to convert between USB and RS-232C,
communications added OMRON H3AM-NS-A.
USB driver providing virtual communications port for USB,
communications is available.
