Name: Terminal Relay
Model: G6D-F4B Series/G3DZ-F4B Series

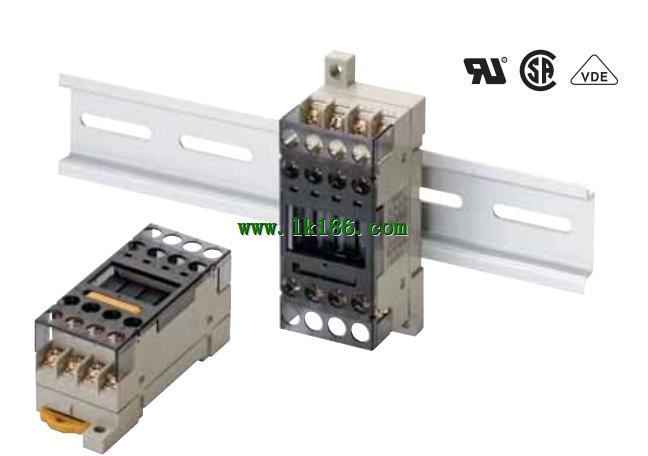

Easy-to-use, Space-saving Terminal Relay with Four-point Output.
Almost the same size as PYF Socket: 31 x 35 x 68 mm (W x H x D).
Each terminal circuit (with coil or contact) is independent from one another.
Short Bar ensures easy connection of common and adjacent terminals.
Provided with a terminal cover that prevents electric-shock ac cidents.
Relay and MOS FET relay models are available.
LED operation indicator.
Built-in diode absorbs coil surge.
Mounts either on DIN track or screws.
Tool for easy mounting or removal of Relays provided.
UL, CSA, and VDE certification for standard models (VDE: G6D-F4B only).
