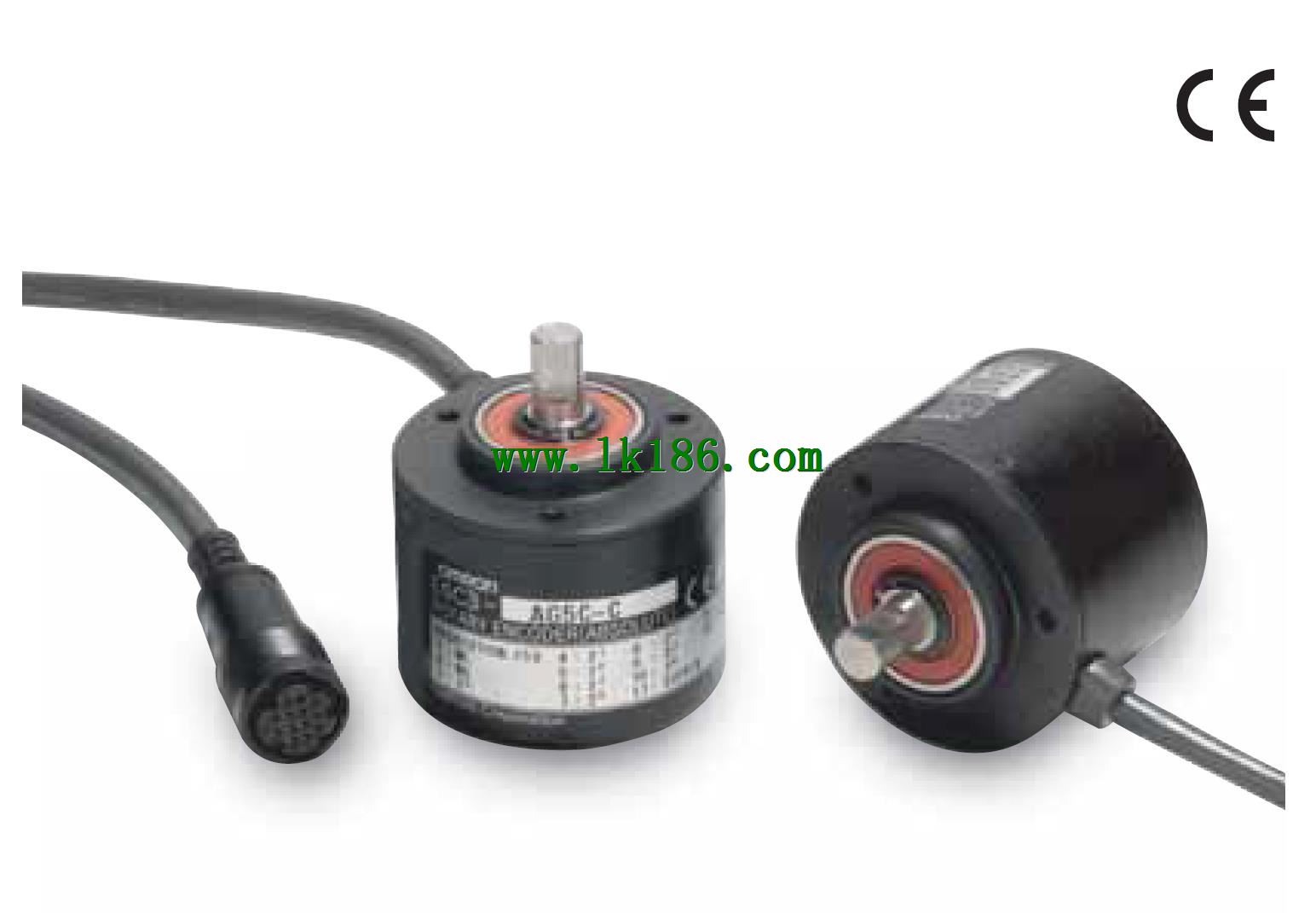

E6C3-AN1E 256P/R 1M OMRON Slim Encoder with Diameter of 50 mm E6C3-AN1E 256P/R 1M
Brand:
OMRON
Name: Slim Encoder with Diameter of 50 mm
Model: E6C3-AN1E 256P/R 1M
Power supply voltage: 5 VDC.
Output configuration: Voltage output.
Output code: Binary.
Resolution (divisions): 256.
Connection method: Pre-wired Model (1 m).
Rugged Rotary Encoder.
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings).
Optimum angle control possible in combination with PLC or,
Cam Positioner.
...More relevant models >>>>
Name: Slim Encoder with Diameter of 50 mm
Model: E6C3-AN1E 256P/R 1M
Power supply voltage: 5 VDC.
Output configuration: Voltage output.
Output code: Binary.
Resolution (divisions): 256.
Connection method: Pre-wired Model (1 m).
Rugged Rotary Encoder.
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings).
Optimum angle control possible in combination with PLC or,
Cam Positioner.
