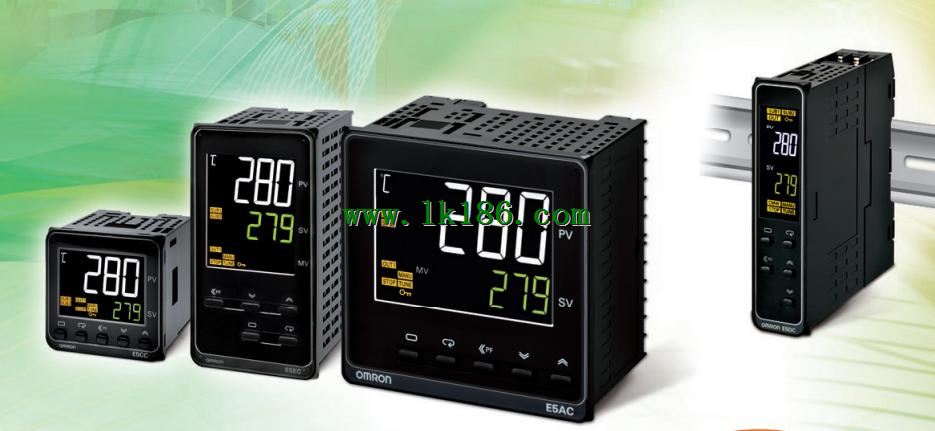

E5AC-RX3ASM-800 Power supply voltage: 100 to 240 VAC OMRON E5AC-RX3ASM-800

Control output 1: Voltage output.
Control output 2: Relay output.
Auxiliary output: Two.
Communications: RS-485.
Heater burnout: One.
Event inputs: Two.
Power supply voltage: 24 VAC/VDC.
Large White PV Display That’s Easier to Read.
Easy to Use, from Model Selection to Setup and Operation.
A Complete Range of I/O Capacities,
Functions, and Performance OMRON E5AC-RX3ASM-800.
Handles More Applications E5AC-RX3ASM-800
The white PV display with a height of 15.2 mm improves visibility.
High-speed sampling at 50 ms.
Short body with depth of only 60 mm.
Easy connections to a PLC with programless communications.
Use component communications to link Temperature,
Controllers to each other. New DIN Track Mounting Temperature OMRON E5AC-RX3ASM-800.
Controller.
Two channels of temperature control available despite width of,
only 22.5 mm.
The Temperature Controller itself can be replaced without,
changing terminal wiring.
Use in combination with a compact Setting Display Unit to,
reduce communications programming requirements.
Front-panel LED indicators for easy operation monitoring.
Power supply and communications wiring not required between,
Units when mounted side-by-side OMRON E5AC-RX3ASM-800.
CompoWay/F communications protocol supported.
UL, CSA, and CE Marking compliance. Size: 96 x 96mm.
Control output 1: double relay (proportional valve).
Auxiliary (alarm) output: 4.
Transfer output: -.
Event input: 2 OMRON Digital Temperature Controller.
Communication: RS-485.
Break detection: -.
Power supply voltage: AC100 ~ 240V.
E5 - C series of new products program OMRON Digital Temperature Controller.
Maximum 256 segment of the program capacity,
Support for multiple applications.
Can be set up to 8 procedures (mode) x 32 (step) procedure.
The use of high 25mm (E5AC-T), 18mm (E5AC-T) PV display (white),
Improve visibility.
Not only on the top of the body, but also on the front,
The use of communication adapter cable (sold separately) connected to the computer after,
No power connection can be set OMRON Digital Temperature Controller.
It can be easily set by CX-Thermo (sold separately).
High speed sampling to acchieve 50ms E5AC-RX3ASM-800.
With auxiliary output (4 points), event input (maximum 6 points), the transmission output,
Support a variety of applications.
Slender fuselage depth 60mm.
Easy to connect with PLC through no program communicatiion OMRON E5AC-RX3ASM-800.
Combined temperature control device through component communication.
Add position proportional control type, also support control valve control.
