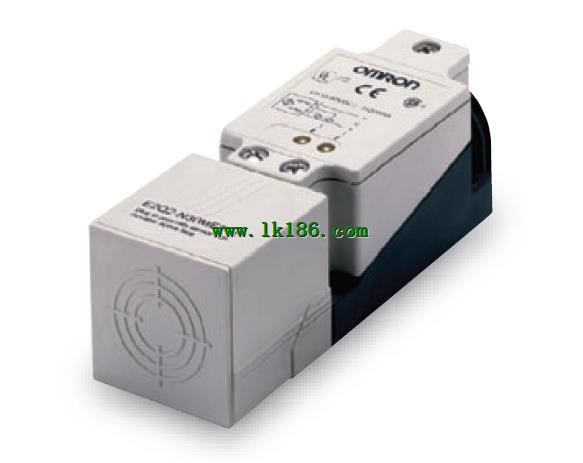

E2Q2-N15Y4-H OMRON E2Q2-N15Y4-H Detection direction can be according to the front, side (up and down, around 90 units) change Square type proximity sensor
Brand:
OMRON
Name: Square type proximity sensor
Model: E2Q2-N15Y4-H
Free change detection direction.
Detection direction can be according to the front, side (up and down, around 90 units) change.
Can be similar to the feeling of a limit switch installation.
Type: AC type.
Shape: shield.
Detection range: 15mm.
Action mode: NO/NC (toggle).
...More relevant models >>>>
Name: Square type proximity sensor
Model: E2Q2-N15Y4-H
Free change detection direction.
Detection direction can be according to the front, side (up and down, around 90 units) change.
Can be similar to the feeling of a limit switch installation.
Type: AC type.
Shape: shield.
Detection range: 15mm.
Action mode: NO/NC (toggle).
Size: M18, Shielded.
Sensing distance: 8.0 mm.
Connection: M12 connector.
