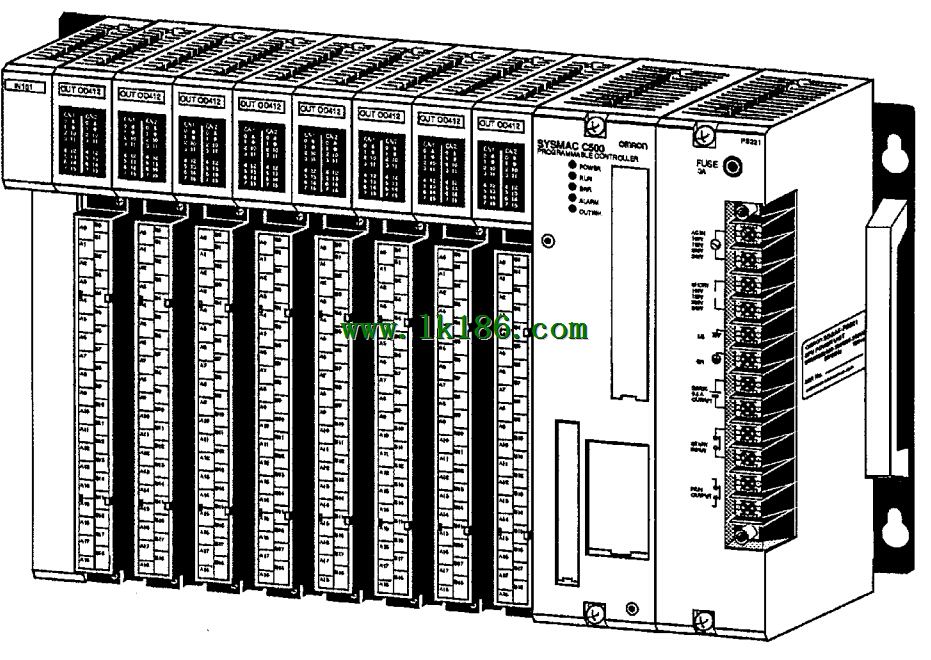

>> C500-MC421(3G2A5-MC421) OMRON C500-MC421(3G2A5-MC421) Motion control unit
C500-MC421(3G2A5-MC421) OMRON C500-MC421(3G2A5-MC421) Motion control unit
Brand:
OMRON
Name: Motion control unit
Model: C500-MC421(3G2A5-MC421)
The initial configuration of the G language unit in the industry due to the use of G language,
Complex processing procedures do not need to be able to make the ladder diagram.
The realization of the first 1 axis simultaneous control of 4 axis simultaneous control in the industry is due to the multi task function,
Can be executed at the same time or the 2 axis simultaneous control of 4 axes, and then can achieve the 4 axis independent control, etc.
Up to 8 units can be installed CVM1 8 units can be installed 1 units, can control up to 32 axes.
Applicable to ABS encoder by standard,
Applicable to the ABS type (absolute output) encoder, so after the emergency stop, no need to search for the origin, etc..
S curve also according to the standard configuration plus deceleration curve, in addition to the trapezoidal outside,
Also configured to suppress the mechanical vibration of the S shape curve.
Program login maximum of up to 100
G language can be programmed with the MC support software G
