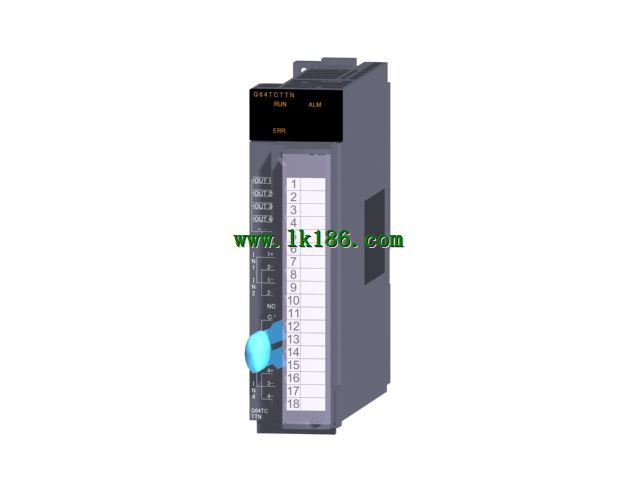

>> Q64TCTTN MITSUBISHI Q64TCTTN Can prevent the simultaneous opening of the output to control the peak current, which is helpful for saving energy and reducing the operation cost Thermocouple type temperature control module (upgraded version)
Q64TCTTN MITSUBISHI Q64TCTTN Can prevent the simultaneous opening of the output to control the peak current, which is helpful for saving energy and reducing the operation cost Thermocouple type temperature control module (upgraded version)
Brand:
MITSUBISHI
Name: Thermocouple type temperature control module (upgraded version)
Model: Q64TCTTN
Input: 4 channels.
Thermocouple (K, J, T, B, S, E, R, N, U, L, PLlI, W5Re/W26Re,,).
No heater disconnection detection function.
Sampling period: 0.5s/4 channel.
18 point terminal station.
Peak current suppression.
Can prevent the simultaneous opening of the output to control the peak current, which is helpful for saving energy and reducing the operation cost.
Heating function at the same time.
The multiple loop can reach the set value at the same time to carry out the uniform temperature control,
Helps to prevent no-load and effective energy saving and reduce operating costs.
Automatic adjustment function.
The PID constant can be adjusted automatically in the control process.
Automatic adjustment of cost (time, material and electrical energy) can be reduced.
Can be flexible in various settings, to achieve the best temperature control of the temperature control module.
Equipment for high temperature control stability of extrusion molding machine,
The temperature regulating module has the function of preventing overheating and preventing over cooling.
According to the control object device, select the standard control (heating or cooling) or the heating and cooling control (heating and cooling) mode.
In addition, the mixed control mode (combined with the standard control and heating - cooling control) can be selected.
