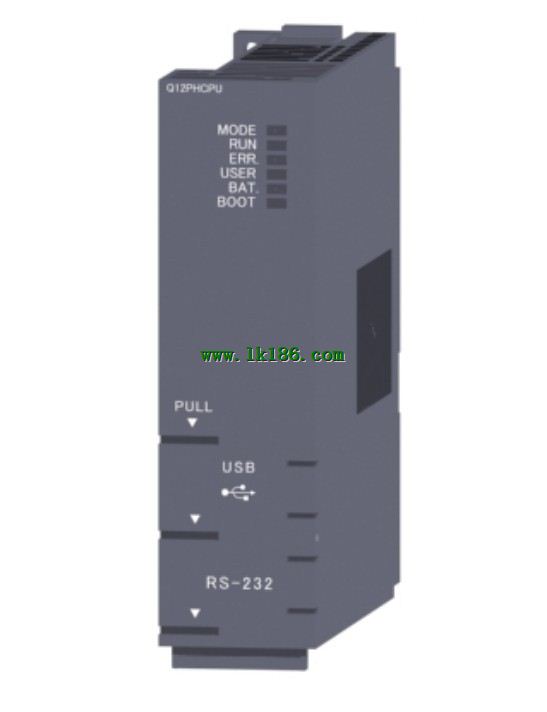

Q12PHCPU Input / output points: 4096 points MITSUBISHI Q12PHCPU

Brand: MITSUBISHI
Name: Process CPU
Model: Q12PHCPU
Program capacity: 124 K step.
Input / output points: 4096 points.
Number of input and output elements: 8192.
Processing speed: 0.034 s.
Program memory capacity: 496 KB.
Support USB and RS232.
High performance CPU plus a set of rich and powerful process control instructions.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
The position signal of the first axis servo amplifier, which is used on the motion CPU, is used as a trigger,
Starting from the programmable controller CPU to the second axis servo amplifier,
Time to output speed command of servo amplifier.
This time is the index of data transmission speed between CPU.

For A6TBXE/A6TBY36E/A6TBX54E/A6TBY54E/A6TBX70E (common cathode; source) long 1m.12 slots.
The main substrate needs to be equipped with CPU and power supply.
Requires 1 power modules.
Used to install Q series modules.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location MITSUBISHI Q12PHCPU.
Q series module products include a variety of types of I/O, analog and positioning function module Q12PHCPU
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control MITSUBISHI Q12PHCPU. Manual pulse generator /INC synchronous encoder input:
Use number: 3 sets of /1 modules.
Better user experience data recording function.
Easy to record, no need to program.
Simply through the special configuration tool wizard to easily complete the settings,
The collected data can be saved in CSV format to SD storage card.
Can be effectively used to save the CSV file to facilitate the creation of a variety of reference materials,
Including daily reports, generate reports and general reports MITSUBISHI Q12PHCPU.
These data can be applied to the data analysis, tracing, etc..
To record the change of control data without missing MITSUBISHI Process CPU.
Data can be collected in a time interval or in a millisecond time interval,
To record the change of the specified control data without any omission MITSUBISHI Process CPU.
Therefore, in the event of failure, can quickly determine the cause, the precise action analysis."10BASE-T/100BASE-TX.
"A channel modular connector.
1 way RS-232.
Easy connection programming tool via ethernet.
Programming tools (Works2 GX, Developer GX) and CPU direct connection (1 to 1),
No need to carry out the IP address settings MITSUBISHI Process CPU. And there is no need to select the cable, the straight line and the cross line can be used.
Therefore, this connection method and the use of USB, can easily communicate with the CPU,
Even the operators are not familiar with the network settings can easily establish a connection.
The possibility of expanding control with intelligent function.
Providing a variety of analog modules, is the ideal choice for process control applications.
Can alsoo meet the needs of high speed, high precision control Q12PHCPU.
Most suitable analog modules for high speed conversion control.
Can provide a variety of analog and digital analog conversion module products.
These modules have a variety oof functions, in the connection of equipment, to achieve the greatest flexibility MITSUBISHI Q12PHCPU.
Can meet the inverter control, such as high-speed conversion needs. "
