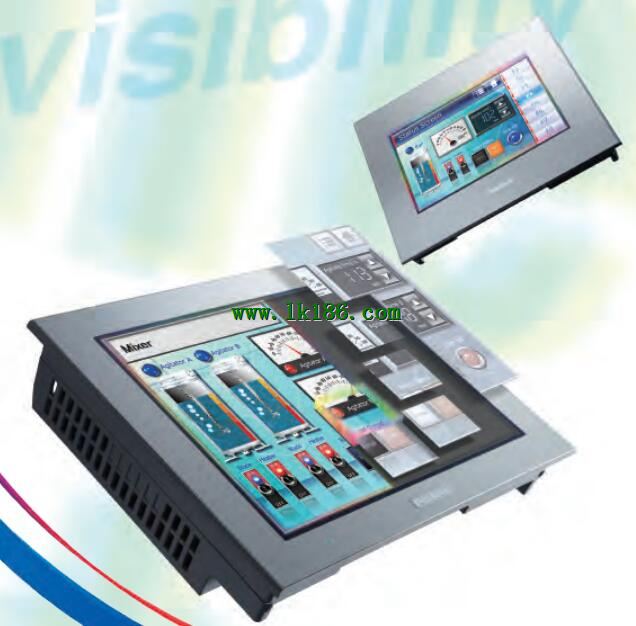

PFXGP4503TAD Proface PFXGP4503TAD
Brand:
Proface
Name: 10.4 inch man machine interface
Model: PFXGP4503TAD
Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency.
...More relevant models >>>>
Name: 10.4 inch man machine interface
Model: PFXGP4503TAD
Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency.
Input voltage: AC100~240V.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXGP4503TAD.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXGP4503TAD
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight Proface PFXGP4503TAD.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines.Display size: 5 Proface PFXGP4503TAD. 7 inches.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type) Proface 10.4 inch man machine interface. Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels) Proface 10.4 inch man machine interface.
Touch panel type: matrix.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes Proface 10.4 inch man machine interface.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with thhe international standards PFXGP4503TAD.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXGP4503TAD.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXGP4503TAD.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXGP4503TAD
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight Proface PFXGP4503TAD.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines.Display size: 5 Proface PFXGP4503TAD. 7 inches.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type) Proface 10.4 inch man machine interface. Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels) Proface 10.4 inch man machine interface.
Touch panel type: matrix.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes Proface 10.4 inch man machine interface.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with thhe international standards PFXGP4503TAD.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXGP4503TAD.
