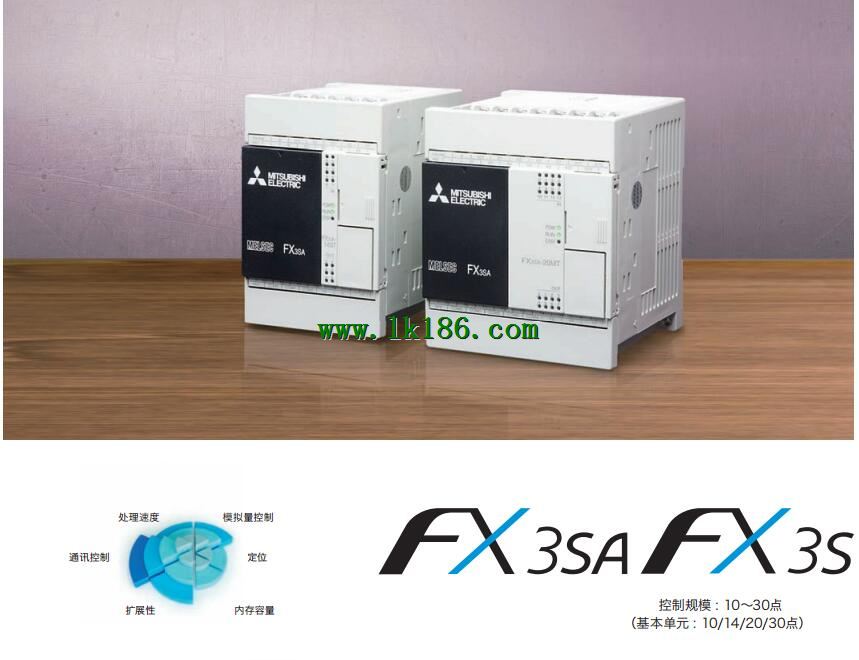

>> MITSUBISHI FX3S-20MR/DS Power supply: DC24V MITSUBISHI FX3S-20MR/DS
MITSUBISHI FX3S-20MR/DS Power supply: DC24V MITSUBISHI FX3S-20MR/DS
Brand:
MITSUBISHI
Name: PLC
Model: FX3S-20MR/DS
Input and output points: 20 points.
Power supply: DC24V.
Input points: 12 points.
Output points: 8 points.
Output form: relay output.
Power consumption: 7W.
Weight: 0.3KG.
Outline dimension: 75x90x49mm.
Built in CPU, power supply, input and output.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on.
