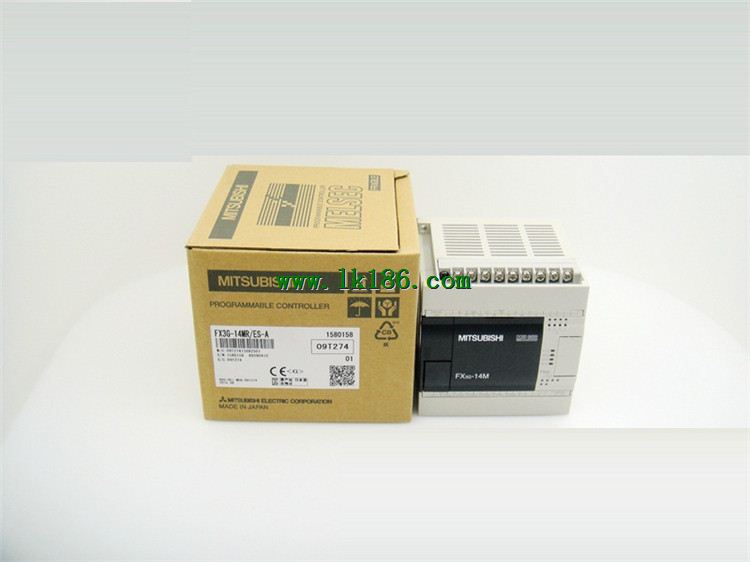

MITSUBISHI FX3G-14MR/ES-A Power supply voltage: AC100-240V PLC FX3G-14MR/ES-A
Brand:
MITSUBISHI
Name: PLC
Model: FX3G-14MR/ES-A
Input points: 8 points.
Output points: 6 points.
Power supply voltage: AC100-240V.
Output type: relay output.
Built in CPU, power supply, input and output. While maintaining the convenience of FX1N while improving performance.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Application instruction: 0.5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
...More relevant models >>>>
Name: PLC
Model: FX3G-14MR/ES-A
Input points: 8 points.
Output points: 6 points.
Power supply voltage: AC100-240V.
Output type: relay output.
Built in CPU, power supply, input and output. While maintaining the convenience of FX1N while improving performance.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Application instruction: 0.5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
