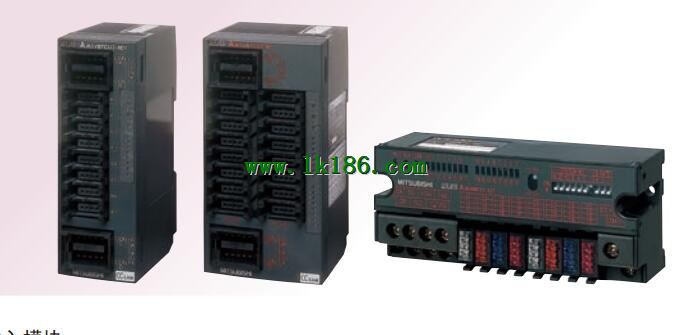

>> AJ65SBTC1-32D Fast connector type DC input module MITSUBISHI AJ65SBTC1-32D Rated input voltage / current: DC24V/5mA
AJ65SBTC1-32D Fast connector type DC input module MITSUBISHI AJ65SBTC1-32D Rated input voltage / current: DC24V/5mA
Brand:
MITSUBISHI
Name: Fast connector type DC input module
Model: AJ65SBTC1-32D
Input type: DC input, positive public end / negative public end.
Input points: 32 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/5mA.
External connection: 1 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
