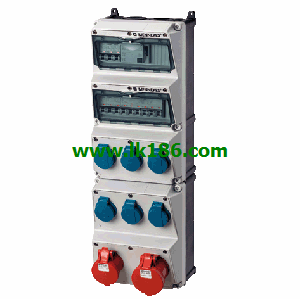

950004 MENNEKES AMAXX receptacle combination 950004
Brand:
Mennekes
Name: AMAXX receptacle combination
Model: 950004
Product Name:AMAXX® receptacle combination
Part No.:950004.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
6 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
6 MCB´s 16A, 1p, C.
Pre-fuse max.:63A.
InA:52A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
...More relevant models >>>>
Name: AMAXX receptacle combination
Model: 950004
Product Name:AMAXX® receptacle combination
Part No.:950004.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
6 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
6 MCB´s 16A, 1p, C.
Pre-fuse max.:63A.
InA:52A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
Product Name:EverGUM receptacle combination
Part No.:70571.
Fitted with:6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
Connection/feeder cable:2 m H07RN-F3G2 MENNEKES 950004. 5 mit NF-plug 16A, 2p+E, 400V.
Enclosure size:445 x 135 mm (H x W) 950004
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No MENNEKES 950004. :930035.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Pre-fuse max:16A.
InA :16A.
RDF:1.
Connection/feeder cable:2 m H07RN-F5G2.5 with CEE-plug 16A, 5p, 400V.
Enclosure size:260 x 225 mm (H x W) MENNEKES 950004.
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover MENNEKES AMAXX receptacle combination.
Product Name:EverGUM receptacle combination
Part No.:7102180.
Fitted with:1 CEE 32A, 4p, 400V
6 french/belg. standard 16A, 2p+E, 230V MENNEKES AMAXX receptacle combination.
Fusing: 1 RCD 40A, 4p, 0.03A
3 MCB´s 16A, 1p+N, C.
Connection/feeder cable:2 m H07RN-F5G6 with CEE-plug 32A, 5p, 400V MENNEKES AMAXX receptacle combination.
Enclosure size:445 x 135 mm (H x W).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No.:930968.
Fitted with:1 CEE 32A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C.
Pre-fuse max:40A.
InA :38A.
RDF:0.7.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wireed for installation 950004.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 950004.
fusing behind a transparent cover.
Part No.:70571.
Fitted with:6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
Connection/feeder cable:2 m H07RN-F3G2 MENNEKES 950004. 5 mit NF-plug 16A, 2p+E, 400V.
Enclosure size:445 x 135 mm (H x W) 950004
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No MENNEKES 950004. :930035.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Pre-fuse max:16A.
InA :16A.
RDF:1.
Connection/feeder cable:2 m H07RN-F5G2.5 with CEE-plug 16A, 5p, 400V.
Enclosure size:260 x 225 mm (H x W) MENNEKES 950004.
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover MENNEKES AMAXX receptacle combination.
Product Name:EverGUM receptacle combination
Part No.:7102180.
Fitted with:1 CEE 32A, 4p, 400V
6 french/belg. standard 16A, 2p+E, 230V MENNEKES AMAXX receptacle combination.
Fusing: 1 RCD 40A, 4p, 0.03A
3 MCB´s 16A, 1p+N, C.
Connection/feeder cable:2 m H07RN-F5G6 with CEE-plug 32A, 5p, 400V MENNEKES AMAXX receptacle combination.
Enclosure size:445 x 135 mm (H x W).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No.:930968.
Fitted with:1 CEE 32A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C.
Pre-fuse max:40A.
InA :38A.
RDF:0.7.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wireed for installation 950004.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 950004.
fusing behind a transparent cover.
...More relevant models >>>>
