>> 83698 MENNEKES Stainless steel receptacle combination MENNEKES 83698

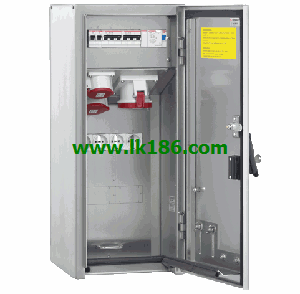

83698 MENNEKES Stainless steel receptacle combination MENNEKES 83698
Brand:
Mennekes
Name: Stainless steel receptacle combination
Model: 83698
Product Name:Stainless steel receptacle combination
Part No.:83698.
Fitted with:1 CEE 63A, 5p, 400V
1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB´s 16A, 1p, B.
Pre-fuse max:63A.
InA :63A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:700 x 300 x 310 mm (H x W x D).
Protection type IP44.
stainless steel enclosure (material 1.4301).
surface with a flat finish (K240), material 1.4571 on request.
protection type IP 44 with closed door.
...More relevant models >>>>
Name: Stainless steel receptacle combination
Model: 83698
Product Name:Stainless steel receptacle combination
Part No.:83698.
Fitted with:1 CEE 63A, 5p, 400V
1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB´s 16A, 1p, B.
Pre-fuse max:63A.
InA :63A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:700 x 300 x 310 mm (H x W x D).
Protection type IP44.
stainless steel enclosure (material 1.4301).
surface with a flat finish (K240), material 1.4571 on request.
protection type IP 44 with closed door.
Product Name:AMAXX®s receptacle combination
Part No.:960009.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:32A.
InA:32A.
RDF:1 .
Connection/feeder cable:for 1 cable up to 5 x 10 mm² MENNEKES 83698.
Enclosure size:650 x 112 836985 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST MENNEKES 83698.
fusing behind a transparent cover.Product Name:EverGUM receptacle combination
Part No.:71045.
Fitted with:1 CEE 32A, 4p, 400V
2 CEE 16A, 4p, 400V
4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB´s 16A, 3p, C
2 MCB´s 16A, 1p+N, B.
Pre-fuse max:63A MENNEKES 83698.
InA :43A.
RDF:0.45.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:380 x 320 mm (H x W) MENNEKES Stainless steel receptacle combination.
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003 MENNEKES Stainless steel receptacle combination.
pre-wired for installation.
Product Name:DELTA-BOX receptacle combination
Part No.:92910.
Fitted with:1 CEE 16A, 5p, 400V.
2 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² MENNEKES Stainless steel receptacle combination.
Protection type:IP67.
pre-wired for installation.
with internal strain relief and installed hanging hook.
enclosure and insert made of AMAPLAST.Product Name:AMAXX® receptacle combination
Part No.:920027.
Fitted with:4 CEE 16A, 5p, 400V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:260 x 225 mm (H x W) 83698.
Protection type IP44.
pre-wired for installation.
hinged to the sidee MENNEKES 83698.
enclosure and insert made of AMAPLAST.
Part No.:960009.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:32A.
InA:32A.
RDF:1 .
Connection/feeder cable:for 1 cable up to 5 x 10 mm² MENNEKES 83698.
Enclosure size:650 x 112 836985 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST MENNEKES 83698.
fusing behind a transparent cover.Product Name:EverGUM receptacle combination
Part No.:71045.
Fitted with:1 CEE 32A, 4p, 400V
2 CEE 16A, 4p, 400V
4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB´s 16A, 3p, C
2 MCB´s 16A, 1p+N, B.
Pre-fuse max:63A MENNEKES 83698.
InA :43A.
RDF:0.45.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:380 x 320 mm (H x W) MENNEKES Stainless steel receptacle combination.
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003 MENNEKES Stainless steel receptacle combination.
pre-wired for installation.
Product Name:DELTA-BOX receptacle combination
Part No.:92910.
Fitted with:1 CEE 16A, 5p, 400V.
2 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² MENNEKES Stainless steel receptacle combination.
Protection type:IP67.
pre-wired for installation.
with internal strain relief and installed hanging hook.
enclosure and insert made of AMAPLAST.Product Name:AMAXX® receptacle combination
Part No.:920027.
Fitted with:4 CEE 16A, 5p, 400V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:260 x 225 mm (H x W) 83698.
Protection type IP44.
pre-wired for installation.
hinged to the sidee MENNEKES 83698.
enclosure and insert made of AMAPLAST.
...More relevant models >>>>
