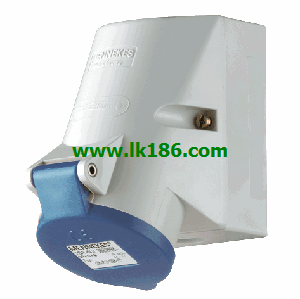

1730 Wall mounted receptacle with TwinCONTACT Hertz: 50-60 Hz MENNEKES 1730
Brand:
Mennekes
Name: Wall mounted receptacle with TwinCONTACT
Model: 1730
Product Name: Wall mounted receptacle with TwinCONTACT.
Part No.: 1730.
Ampere: 16 A.
Poles: 5 p.
Voltage: 230V.
Earth position: 9 h.
Hertz: 50-60 Hz.
Connection technology: Screwless - TwinCONTACT.
Contact: standard.
Protection type: IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°
...More relevant models >>>>
Name: Wall mounted receptacle with TwinCONTACT
Model: 1730
Product Name: Wall mounted receptacle with TwinCONTACT.
Part No.: 1730.
Ampere: 16 A.
Poles: 5 p.
Voltage: 230V.
Earth position: 9 h.
Hertz: 50-60 Hz.
Connection technology: Screwless - TwinCONTACT.
Contact: standard.
Protection type: IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°
Panel socket with TwinCONTACT dual connection terminal.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Current: 16A.
Pole number: 3p.
Voltage: 400V MENNEKES 1730.
Location: 9h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard 1730
Protection level: IP67.Panel socket with TwinCONTACT dual connection terminal.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Current: 32A.
Pole number: 3p MENNEKES 1730.
Voltage: 110V.
Location: 4h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard.
Protection level: IP67.Product Name:Receptacle
Part No.:21075.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts MENNEKES 1730.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.Product Name:Wall mounted receptacle
Part No.:7227.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h
Hertz50-60 Hz MENNEKES Wall mounted receptacle with TwinCONTACT.
Connection technology:screw terminals.
Contact: standrad MENNEKES Wall mounted receptacle with TwinCONTACT.
Protection type IP44.
screw terminals.
SoftCONTACT.
Switched.
mechanical DUO-interlock.
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No MENNEKES Wall mounted receptacle with TwinCONTACT. :1392.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
straight.Product Name:Wall mounted receptacle
Part No.:5620A.
Amperre:16A 1730.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection typee IP44 MENNEKES 1730.
screw terminals
switched.
mechanical DUO-interlock.
3 pole fuse socket D 01.
receptacles can be padlocked.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Current: 16A.
Pole number: 3p.
Voltage: 400V MENNEKES 1730.
Location: 9h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard 1730
Protection level: IP67.Panel socket with TwinCONTACT dual connection terminal.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Current: 32A.
Pole number: 3p MENNEKES 1730.
Voltage: 110V.
Location: 4h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard.
Protection level: IP67.Product Name:Receptacle
Part No.:21075.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts MENNEKES 1730.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.Product Name:Wall mounted receptacle
Part No.:7227.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h
Hertz50-60 Hz MENNEKES Wall mounted receptacle with TwinCONTACT.
Connection technology:screw terminals.
Contact: standrad MENNEKES Wall mounted receptacle with TwinCONTACT.
Protection type IP44.
screw terminals.
SoftCONTACT.
Switched.
mechanical DUO-interlock.
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No MENNEKES Wall mounted receptacle with TwinCONTACT. :1392.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
straight.Product Name:Wall mounted receptacle
Part No.:5620A.
Amperre:16A 1730.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection typee IP44 MENNEKES 1730.
screw terminals
switched.
mechanical DUO-interlock.
3 pole fuse socket D 01.
receptacles can be padlocked.
