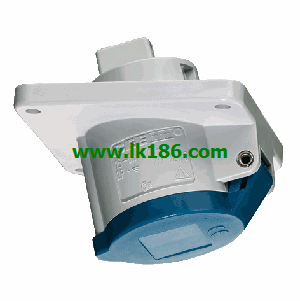

1278 Voltage:400V MENNEKES 1278

Product Name:Cepex panel mounted receptacle
Part No.:4172.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock MENNEKES 1278.
two keys.
cannot be dismantled when locked.
on request with identical locks.
suitable for installation in cable ducts and columns 1278
with identical lock: part no. + index G.Product Name:Panel mounted receptacle
Part No.:1493.
Ampere:32A.
Poles:3p.
Voltage:400V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad MENNEKES 1278.
Protection type IP44.
screw terminals.
suitable for through wiring.
20° inclination.
receptacles optional fitted with auxiliary contact.Product Name:Wall mounted receptacle
Part No.:7019.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :7h.
Hertz50-60 Hz.
Connection technology:screw terminals MENNEKES 1278.
Contact: standrad.
Protection type IP67.
screw terminals.
SoftCONTACT.
contactor and electrical interlock.Product Name:Panel mounted receptacle with TwinCONTACT
Part No MENNEKES Panel mounted receptacle. :1643.
Ampere:16A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz50-60 Hz.
Connection technology:Screwless - TwinCONTAC MENNEKES Panel mounted receptacle.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
flange: 73,5 x 64 mm.
fixing hole spacing: 60 x 52 mm.
20° inclination.Panel socket with TwinCONTACT dual connection terminal MENNEKES Paneel mounted receptacle 1278.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Currentt: 32A MENNEKES 1278.
Pole number: 5p.
Voltage: 230V.
Location: 9h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard.
Protection level: IP67.
