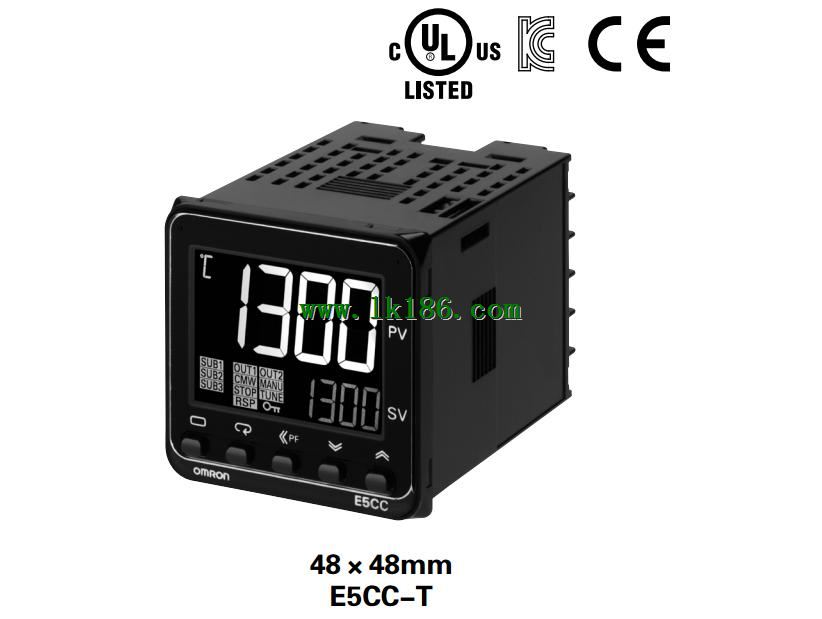

E5CC-TCX3ASM-064 OMRON E5CC-TCX3ASM-064

I/O Bus Connector Cover 3G2A5-COV01Size: 48 x 48mm.
Body: terminal type.
Type: control output 1 point type (power AC/DC24V).
Shell color: black.
Control output: current output.
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
The failure detection function of the heater with the broken line and SSR: - OMRON E5CC-TCX3ASM-064.
Event entry point: 2.
Transfer output: output (using control output) E5CC-TCX3ASM-064
Communication: -.
General thermostat new high performance (high resolution, high speed, high precision input) type products.
Support simple operation, preventive maintenance, using a new type of liquid crystal, visual angle, contrast to enhance OMRON E5CC-TCX3ASM-064.
High resolution 5 bit display / can display 0.01 degrees C (to achieve a small size of 48 x 48mm) .
High speed sampling period 60ms.
All models (thermocouple /Pt/ analog input switching), 1 machines to support a variety of sensors.
Add PV/SV state display function, to see the state of the thermostat.
(automatic / manual, RUN/STOP, alarm), interactive display PV/SV OMRON E5CC-TCX3ASM-064.
By supporting software (CX-ThermoVer.4.0) to carry out a simple function (AND/OR logic and delay),
Be able to execute flexible contact output
Increase the control output ON/OFF number counting function, can predict the temperature controller internal relay faultInsulation method: Photovoltage coupler .
Operation Display: Yes(green).
Output(SSR): DC.
Zero cross Function: --.
Rated output Load: 3 A(at 5 to 24 VDC).
Rated input voltage (socket): 12 VDC.
Applicable model: G3RV-SR700/500-A DC12V.
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with,
traditional screw terminals .).
No screw loosening means maintenance-free application,
realizing high reliability E5CC-TCX3ASM-064.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires.
Screw terminal is also sttocked to meet the screw type needs E5CC-TCX3ASM-064.
Mounted relay or solid-state relay has a plug-in terminal.
that is difficult to bend at the time of exchange.
E5CC-TCX3ASM-064 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=E5CC-TCX3ASM-064&select=5
