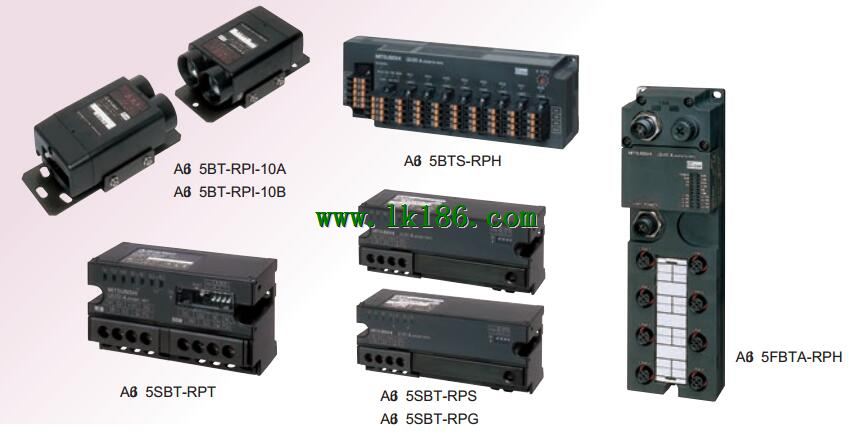

AJ65BTS-RPH MITSUBISHI AJ65BTS-RPH

Output type: transistor output, source.
Output points: 16 points.
OFF leakage current: 0.1mA.
Output protection function.
Rated load voltage / current: DC12V/DC24V/0.1A.
External connection: 1 wire.
MIL connector type.
Minimum size of industry.
Relay terminal, terminal station conversion module and electromagnetic valve, etc MITSUBISHI AJ65BTS-RPH. are connected to a simple MIL connector.
Simply remove the connector can be replaced with a simple module AJ65BTS-RPH
Additional module power supply, I/O power sharing.
No additional I/O power supply, you can reduce the cost and set space. Input / output mode: transistor output (drain).
Output points: 8 points MITSUBISHI AJ65BTS-RPH.
DC5V internal consumption current: 75mA.
DC24V internal consumption current: 75mA .
In order to extend the input output of the device.
Also has a built-in power supply products.
The maximum number of points for the input and output is 256.
Expansion module: up to 16 units (in addition to the power expansion module)
The total number of CC-Link, AnyWireASLINK, and Bitty series of remote I/O is 512 points MITSUBISHI AJ65BTS-RPH. Output type: transistor output, drain type.
Output points: 4 points .
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC12V/DC24V/0.1A.
External connection: 2 wire.
Spring clip terminal.
Do not need to re tighten, suitable for wire specifications for 0.3~1.5MM square.
Terminal block is 2 piece structure.
An input module shared by the common terminal of the positive and negative.
The 8 point of the output module is appended to the source type.
Can be installed along the 6 direction. Input points: 32 points.
Input voltage: AC200 ~ 240V.
Current: 5mA.
Response time: 55ms.
16 points / a common end.
50 point terminal station.
System program memory for storing system program,
Including management procedures, monitoring procedures, as well as the user program to do the compiler to compile the process of interpretation.
Read only memory. Manufacturers use, content can not be changed, power does not disappear.
PLC selection with the development of PLC technology, more and more types of PLC products,
Function is becoming more and more perfect, and its application is more and more extensive.
Different series of different models of PLC has different performance, applicable occasions also have different emphasis,
Price also has a greater difference. Therefore PLC selection,
Under the premise of meeting the control requirements,
Should consider the best performance to price ratio, a reasonable choice of PLC.
Each scanning process. Focus on the input signal sampling. Focus on the output signal to refresh.
Input refresh process. When the input port is closed,
Program in the implementation phase, the input end of a new state, the new state can not be read.
Only when the program is scanned, the new state is read.
A scan cycle is divided into the input sample, the program execution, the output refresh.
The coontents of the ccomponent image register are changed with the change of the execution of the program AJ65BTS-RPH.
The length of the scan cycle is determined by the three.
CPU the speed of executing instructions.
Time of instruction.
Instruction count.
Due to thhe adoption of centralized sampling AJ65BTS-RPH.
Centralized output mode.
There exist input / output hysteresis phenomena, i.e., the input / output response delay.
AJ65BTS-RPH Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=AJ65BTS-RPH&select=5
