MENNEKES 1845 Door Switches 1845

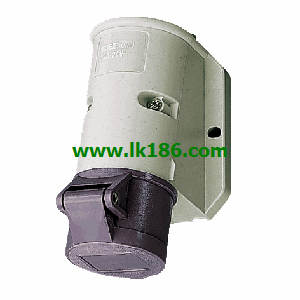

Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1344.
Ampere:16 A.
Poles:4 p.
Voltage:500V.
Earth position:7 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
external fixing.
cable entry from top.
blind entry ( can be cut out ) on the backside MENNEKES 1845. Product Name:Panel mounted receptacle
Part No.:1404.
Ampere:16A 1845
Poles:4p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44 MENNEKES 1845.
screwless spring terminals .
suitable for through wiring.
flange: 62 x 62 mm.
fixing hole spacing: 47 x 47 mm.
straight.Product Name:Receptacle
Part No.9303.
Ampere :16A.
Poles：3P.
Voltage:>50-250V MENNEKES 1845.
Hertz:(DC) Hz .
Earth position:3 h.
Connection technology:Screw terminals.
Contact:standard .
Protection type:IP67.
screw terminals 1845.
enclosure material PBT, free of halogens, highly resistant to chemicals.
with 2 external fixings.
one cable entry at topp aand two blind cable entries (can be cut out) at bottom 1845.
receptacles are designed for adding an auxiliary contact switch.
enclosure can be turned 180°.
1845 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=1845&select=5
