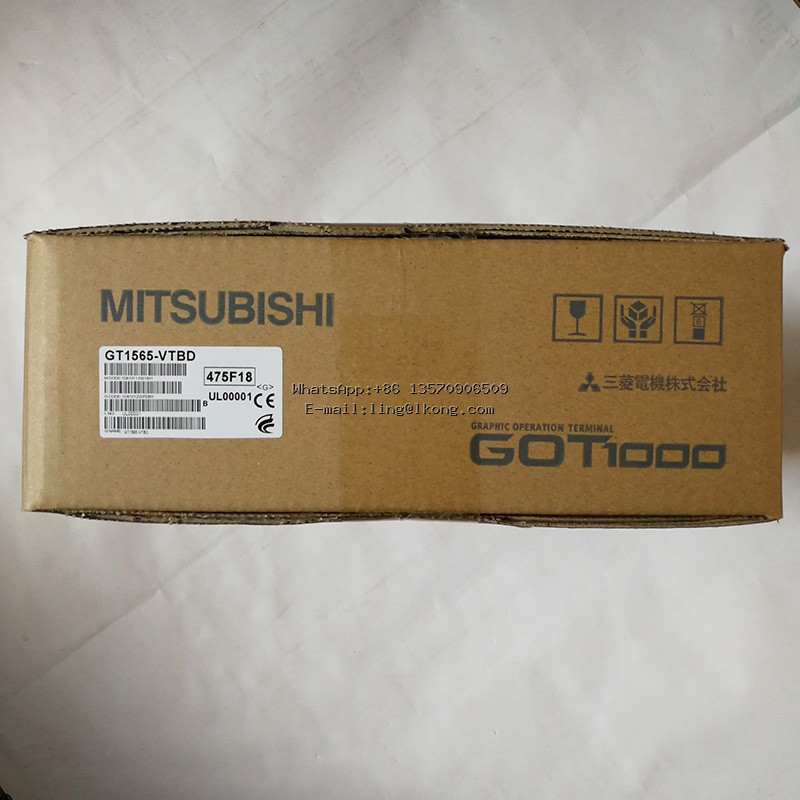

Mitsubishi GT1565 VTBD 8.4 inch Touch Screen Display Industrial HMI Panel
Mitsubishi 8.4-inch Touch Screen GT1565-VTBD
Mitsubishi 8.4-inch Touchscreen GT1565-VTBD
A model widely suitable for networked or standalone operation.
Features an 8.4-inch TFT color display with high brightness and wide viewing angle, supporting 256 colors or more, VGA resolution (640×480), and panel-mount installation.
Powered by DC24V with a black main unit.
Communication interfaces include built-in RS-422, standard RS-232, and a USB device port.
User memory capacity: 9MB.
Supports video/RGB units.
Note: If the display resolution, mode, or controller refresh rate is changed during operation, causing misalignment between the cursor and touch point, recalibration is required.
To ensure proper functionality, avoid installing two or more touchscreen drivers on the same host to prevent conflicts.
Mitsubishi 8.4-inch Touch Screen GT1565-VTBD
Series Overview:
This model is widely suitable for both networked and standalone operating environments, offering versatile application across industrial automation and control systems.
Screen Specifications:
●Size: 8.4 inches
●Display Colors: 256 colors or more
●Display Type: TFT color with high brightness and wide viewing angles
●Resolution: VGA (640 × 480 pixels)
Installation and Design:
●Mounting Type: Panel-mounted
●Main Unit Color: Black
Power and Communication:
●Power Supply: DC24V
●Communication Interfaces: Built-in RS-422, standard RS-232 interface, and USB device port
Features and Compatibility:
●User Memory Capacity: 9MB (Note: GT15__-VNB_ models have 5MB)
●Video/RGB Unit Support: Compatible with video and RGB input units
●Ideal Use: A reliable choice for both networked and independent operations
Calibration and Operational Notes:
●If the display resolution or mode is changed during operation, or if the refresh rate of the touch screen controller is manually adjusted, recalibration is required if the cursor and touch point become misaligned.
●To ensure proper functionality, avoid installing two or more touch screen drivers on a single host device, as this may cause system conflicts and disrupt normal operation.
Application:
Designed for industrial environments requiring durable, responsive, and easy-to-integrate touch screen solutions.
